Hall Sensor 5 beacon can be used for various Open/Close Detection. In December 2024, the magnet height was increased from 3mm to 5mm while maintaining the same magnet holder size. This enhancement improved the sensing distance.
Features
- Sensing distance increased from 5–10mm to 10–15mm.
- Maintains the same magnet holder size.
- No change in unit price.

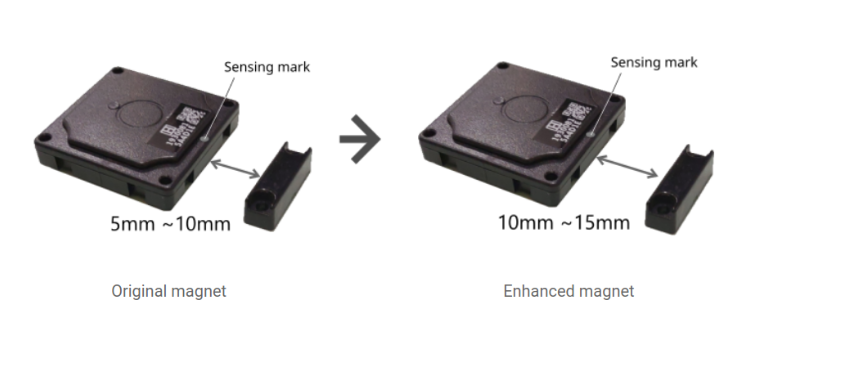

Sensing Distance
- Original Magnet: 5–10mm
- Enhanced Magnet: 10–15mm

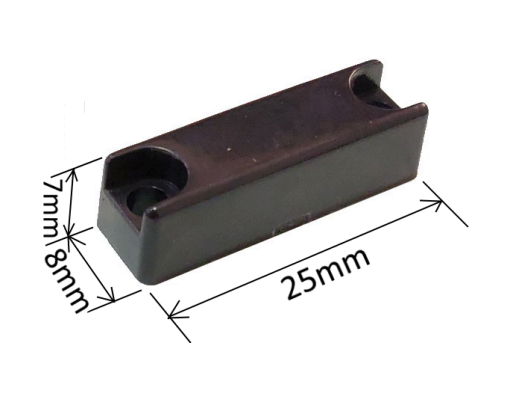

Magnet (Only available for Hall Sensor 5)

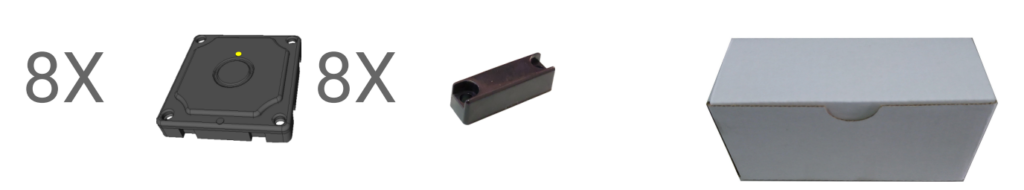

Package Box
One package box(size: 100mmX43mmx47mm) contains 8 units of Hall Sensor 5 and 8 pieces of magnet
Waterproof
Suitable for harsh environment use.
Low power
7 years of battery life

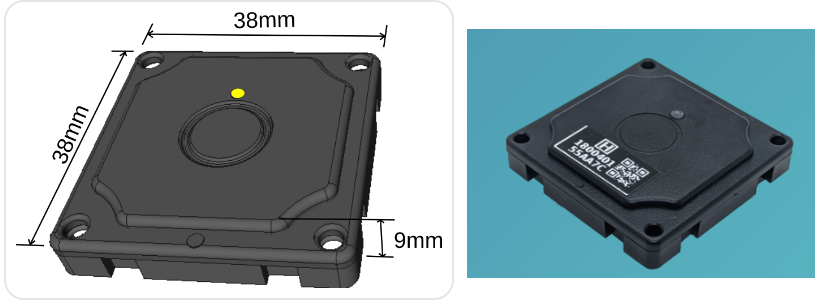

Small Size
Easy to install
Hall Sensor
For open/close detection application
Applications
Open/Close Detection
Door open or closed
Open/Close Detection
Window open or closed
Specification
| Battery Life | >7 yr*, in default 30s transmit period@1Mbps. (assume 120 times of active event in one day) |
| Battery | CR2032 x 1 |
| Operation environment | -20°C to 60°C |
| Waterproof | IP67 |
| Bluetooth® Low Energy | Bluetooth 5 (support Coded Phy) |
| BLE range | 100M |
